Analysis Services Memory Limits

One of the least understood areas of Analysis Services performance seems to be that of memory limits – how they work, and how to configure them effectively.  I was going to start with an overview of Performance Advisor for Analysis Services (aka, PA for SSAS), but during the beta I ran across such a good example of the software in action in diagnosing a problem with memory, I think it’ll work just as well to go through that issue step-by-step.

First some background.  SSAS has two general categories of memory, shrinkable and nonshrinkable, and they work pretty much like it sounds.  Shrinkable memory can be easily reduced and returned back to the OS.  Nonshrinkable memory, on the other hand, is generally used for more essential system-related stuff such as memory allocators and metadata objects, and is not easily reduced.

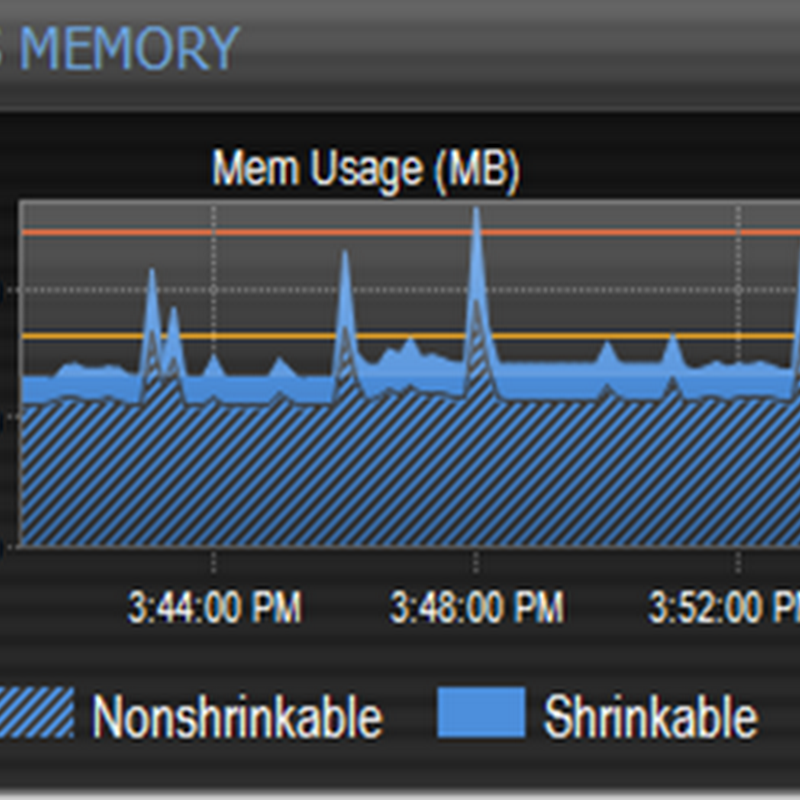

PA for SSAS shows both types on the SSAS Memory Usage chart:

Cleaner MemoryIf you switch to “Memory by Category” mode via right-click menu, you get a more detailed breakdown.  Just like the chart above, the memory with hash marks is nonshrinkable:

Memory by Category

SSAS uses memory limit settings to determine how it allocates and manages its internal memory.  Memory\LowMemoryLimit defaults to 65% of the total available physical memory on the machine (75% on AS2005), and Memory\TotalMemoryLimit (also sometimes called the High Memory Limit) defaults to 80%.  This is the total amount of memory that the SSAS process itself (msmdsrv.exe) can consume.  Note on the charts above, the orange line represents the Low memory limit and the red line the Total memory limit.  This makes it very easy to see how close SSAS’s actual memory consumption is to these limits.  Once memory usage hits the Low limit, memory cleaner threads will kick in and start moving data out of memory in a relatively non-aggressive fashion.  If memory hits the Total limit, the cleaner goes into crisis mode… it spawns additional threads and gets much more aggressive about memory cleanup, and this can dramatically impact performance.

Between the Low and Total limits, SSAS uses an economic memory management model to determine which memory to cleanup.  This model can be adjusted by some other parameters related to the memory price, but I’m not going to get into those here.

When it comes to memory management SSAS is entirely self-governing, and unlike SQL Server it doesn’t consider external low physical memory conditions (which can be signaled by Windows) or low VAS memory.  This may be partly because SSAS is already much more subject to Windows own memory management than is SQL Server, since Analysis Services databases are a collection of files on the file system and can make heavy use of the file system cache, whereas SQL Server does not.  This means that you can have a significant amount of SSAS data loaded into RAM by virtue of the file cache, and this will not show up as part of the SSAS process memory, or in any way be governed by the SSAS memory limits.  (For this reason we now show system file cache usage and file cache hit ratios on the dashboard as well so you can see this.)

On a side note, a byproduct of this design is that if available memory is low and other processes on the server are competing for memory resources, SSAS will pretty much ignore them, and look only to its own memory limit settings to determine what to do.  This means, for example, that memory for a SQL Server using the default “Minimum server memory” setting of 0 can be aggressively and dramatically reduced by an SSAS instance on the same machine with default memory limits, to the point where the SQL Server can become unresponsive. SQL Server is signaled by Windows that memory is low, and responds accordingly by releasing memory back to the OS, which is then gobbled up by SSAS.

Graphical Anomaly, or Serious Memory Problem?

Very early in our beta for PA for SSAS, a beta tester reported what they thought was an odd graphical anomaly in the bottom right of the SSAS Memory Usage chart:

mem_cleaner_anomaly

To the untrained eye, this would certainly look like an anomaly, but once you’ve seen what this chart is supposed to look like, it’s fairly obvious that it’s an “H” on top of an “L”.

This particular tester had been eager to get the beta because they had suffered from poor performance and other strange behaviors for quite some time.  They had actually already scheduled Microsoft to come in and help troubleshoot the issues.

What exactly did this “anomaly” mean?  What caused it, how it was resolved, and what was the net effect on performance, if any?  All great questions… and this will be the subject of my next post, so stay tuned ;-)

If anyone has any guesses in the meantime feel free to comment.  The first person to get it right will win a free license of Performance Advisor for Analysis Services! (that’s a $2495 value)

2 comments:

  1. A thought/guess - the SSAS server had the LowMemoryLimit and TotalMemoryLimit both set to 0?

    It'd cause a lot of churn on the server - if the values for Low and Total are the same, the service would go into aggressive cleaning mode any time a request exceeded the amount of memory specified in the Low limit, which would be pretty much anytime anything happened on the server.

    ReplyDelete
  2. For the Analysis Services Properties Memory / LowMemoryLimit and Memory / TotalMemoryLimit you may enter Memory values calculated as percentage of min( virtual, physical ), or if greater than 100.0 an absolute value is used. The absolute values are given in Bytes, not in kB or MB, it’s Bytes. (May be that’s the reason why Microsoft made it as signed 64-bit double-precision floating-point number as datatype)
    So I guess here was a small amount of Bytes defined as absolute value for both Limits. This must end in a strange behavior of SSAS Server. Looks like the values entered are very close to 0 MB, might be some hundred kilobytes ?

    ReplyDelete
